Sand Sieving Machine
Sand Sieving Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID), Cheque
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 1 Days
- Main Domestic Market
- All India
About Sand Sieving Machine
SWAN Sand Screening Machine

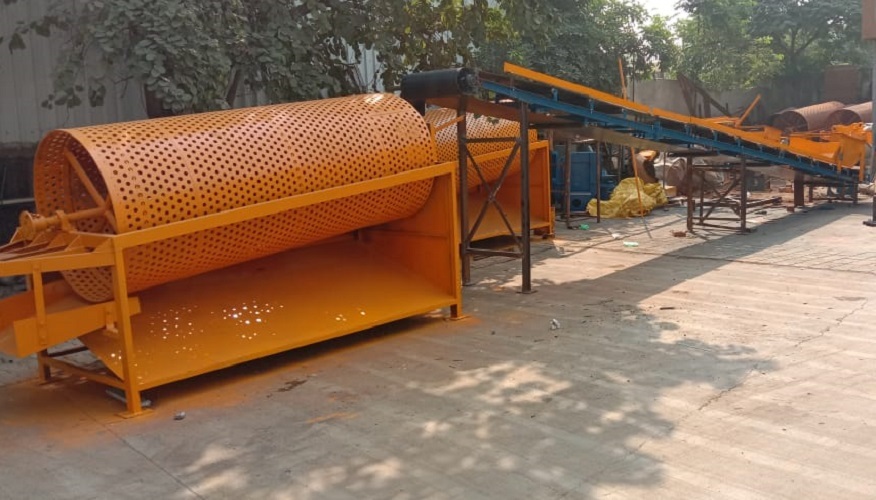

This is a SWAN Rotary Sand Screening Machine (also known as a Rotary Sand Sieving Machine or SWAN Drum Type Sand Sieve Machine). It is used on construction sites to separate sand and other fine materials from debris, stones, and coarse particles.
| Parameter | Specification |
|---|---|
| Make/Brand | Swan Manufacturing |
| Type | Rotary Drum (Trommel Type) |
| Drum Diameter | 8001000 mm |
| Drum Length | 15002000 mm |
| Screen Material | Perforated mild steel sheet |
| Hole Size (Mesh) | 5 mm 12 mm (customizable as per sand grade) |
| Frame Material | Heavy-duty Mild Steel (MS) |
| Drive Type | Manual or Motorized (Electric motor or pulley-belt drive) |
| Motor Power (if motorized) | 1 HP 3 HP (3-phase or single-phase) |
| Output Capacity | 510 cubic meters/hour (depends on sand quality) |
| Inclination Angle | Adjustable for output speed and screening quality |
| Rotation Speed | 2030 RPM (approx.) |
Applications
-
Screening of sand, gravel, and crushed stone.
-
Used in concrete mixing, plastering, and brick manufacturing.
-
Ideal for construction sites and small-scale batching plants.
SWAN Key Features
-
Robust perforated drum with long service life.
-
Easy maintenance and quick cleaning.
-
Heavy-duty steel frame for stability during operation.
-
Can be powered manually or via electric motor drive.
-
Adjustable drum inclination for customized output.
