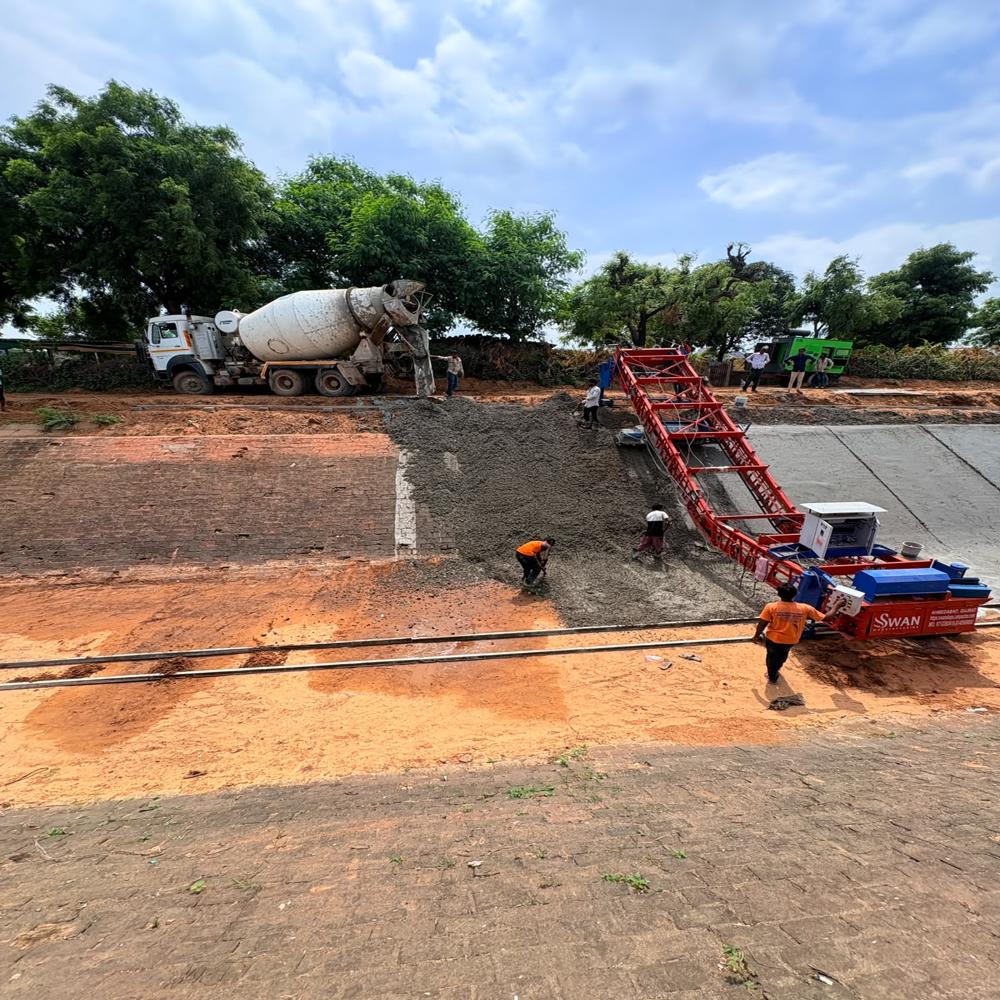

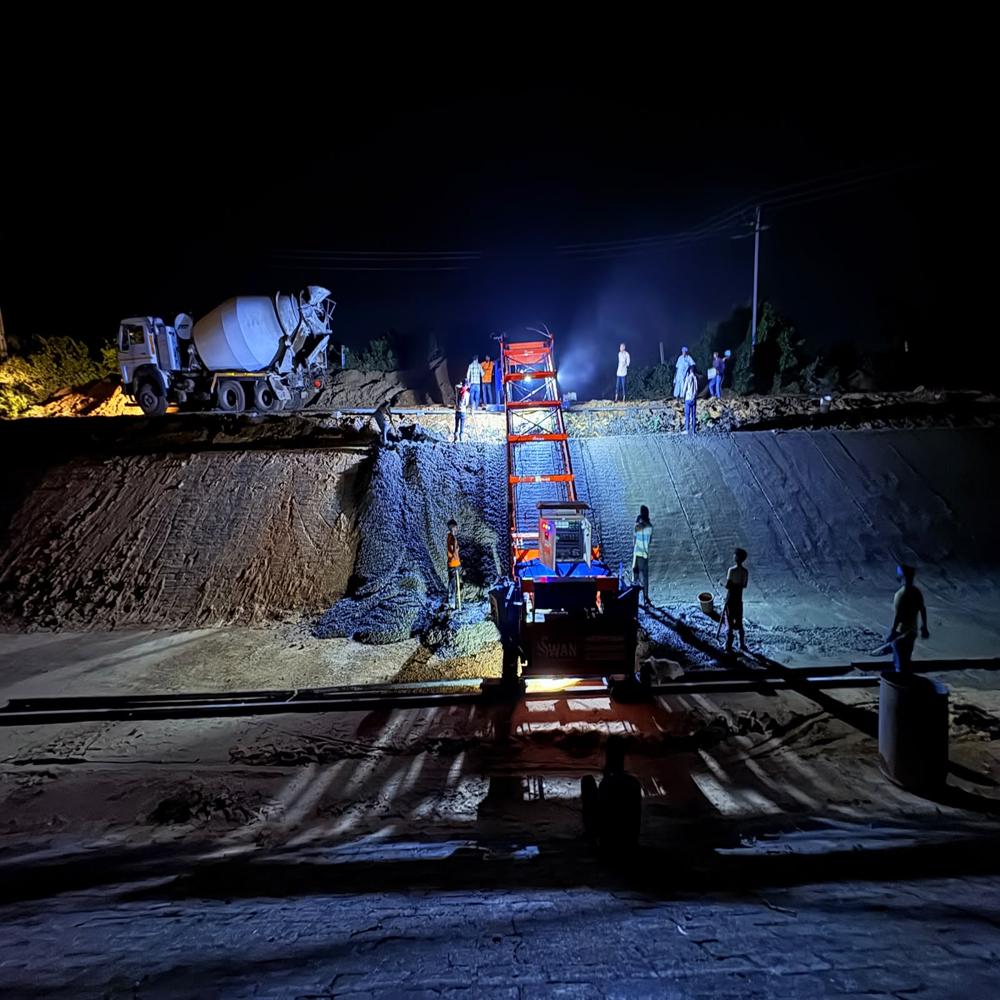

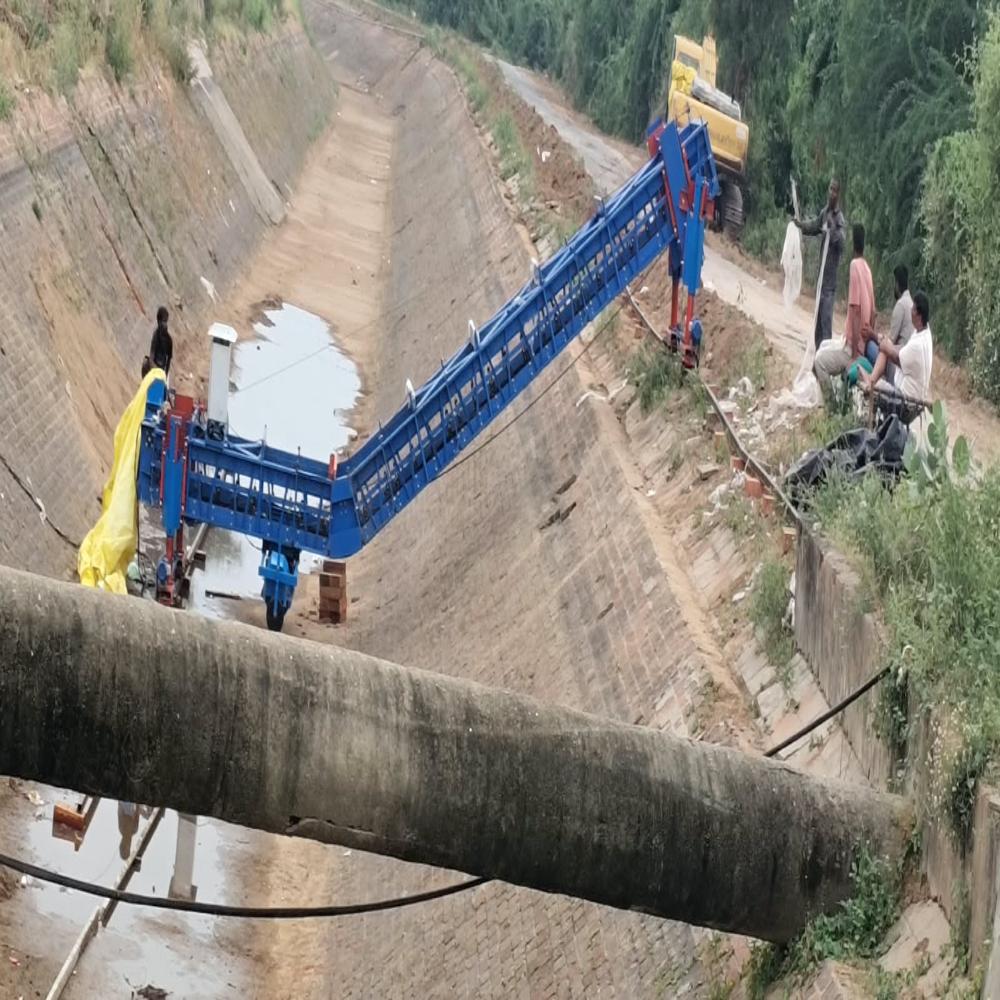

concrete canal finisher paver machine

concrete canal finisher paver machine Specification

Working Width
Adjustable from 3 m up to 10 m

Temperature
Works optimally in 0C - 50C environment

Coverage Area
Suitable for canal widths 3-10 m

Noise Level
<85 dB

Driven Type
Hydraulic Motor Driven

Mount Type
On-Rails and Side Supports

Fuel Type
Diesel or Electric

Type
Concrete Canal Finisher Paver Machine

Material
Heavy Duty Steel Structure

Capacity
50-100 m3/hr (approx.)

Computerized
No

Automatic Grade
Semi-Automatic

Cooling System
Water Cooled

Vibration Frequency
4000-6000 VPM (Variable)

Power
12-18 HP Diesel Engine or Electric Motor

Size
Customizable as per canal width

Color
Blue / Yellow (Custom variant available)

Weight
1800-3200 kg (Depending on model)

Dimension (L*W*H)
Varies, eg. 12m x 2.5m x 2.8m (as per requirement)

Conveyor Adjustment
Manual/Powered, as per configuration

Vertical Adjustment System
Screw Jack Mechanism

Surface Finish
Achievable up to M25-M35 grade

Application
Irrigation Canal, Drainage Canal, Lining Works

Total Manpower Required
2-3 operators per shift

Gear System
Precision Gears with Lubrication Arrangement

Side Shuttering
Removable/Interchangeable Plates

Finish Tolerance
5 mm per segment

Control Panel
Simple operator analog panel with safety indicators

Operator Cabin
Optional Walk-behind Stand

Hydraulic Oil Capacity
22-28 litres

Travel Mechanism
Rack and Pinion System

Mobility
Dismantlable for Transport

Paving Speed
1-2 metres/minute

concrete canal finisher paver machine About

Find exceptional performance and value with our preeminent Concrete Canal Finisher Paver Machine, meticulously crafted for first-rate canal construction. Buy this towering solution, built with a heavy-duty steel structure and precision-engineered gear system, ensuring robust durability at every step. Operating at a paving speed of 1-2 metres/minute, it achieves surface finishes up to M25-M35 grade while providing adjustable working widths between 3-10 meters. The advanced screw jack vertical adjustment, analog operator panel, and versatile configuration options make it indispensable for irrigation, drainage canal, and lining projects. Experience unmatched reliability and efficiency for your workflow.

Key Features and Directions of Use

This concrete canal finisher paver machine is designed for optimal use along canal alignments, utilizing a simple analog control panel equipped with safety indicators for direct operation. Adjust the gear, conveyor, and side shuttering system as per site requirements. Extra features include a water-cooled engine, variable vibration frequency (4000-6000 VPM), and an optional walk-behind operator cabin. The structure is dismantlable for transportation, with manual or powered conveyor adjustment for adaptable field applications.

Supply Ability, Sample Policy, and Payment Terms

Our premium canal finisher paver machine is available for supply in customizable sizes to suit unique project needs. Transportation is streamlined by the machine's dismantlable nature, ensuring hassle-free site delivery. List price quotes are furnished on request, taking configuration and color options into account. Sample policies and payment terms are clearly outlined to provide customers with confidence and transparency. High supply capacity ensures on-time fulfillment for bulk requirements.

FAQ's of concrete canal finisher paver machine:

Q: How does the vertical adjustment system work on this canal finisher paver machine?

A: The machine features a screw jack mechanism that allows for precise vertical adjustment of the paving assembly, ensuring consistent depth and high-quality surface finish throughout canal construction.

Q: What are the typical applications for this concrete canal finisher paver machine?

A: It is specifically designed for irrigation canal lining, drainage canal projects, and large-scale lining works requiring adjustable widths and premium finish tolerances.

Q: When should the machine undergo lubrication and maintenance of its gear system?

A: Routine lubrication should be performed as per the manufacturer's schedule, with checks before each shift to maintain the efficiency and longevity of the precision gear system.

Q: Where can the machine be efficiently transported and assembled?

A: Due to its dismantlable design, the canal finisher paver machine can be transported to project sites with ease and reassembled directly at the location for immediate use.

Q: What is the process for adjusting the working width of the machine?

A: The working width can be altered between 3 to 10 meters by configuring the side supports and interchangeable plates, allowing flexibility for various canal dimensions.
